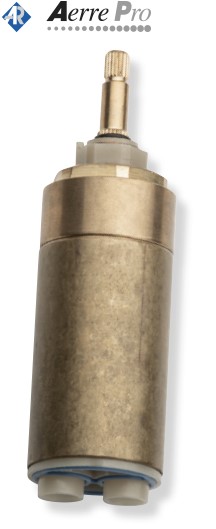

Thermostatic cartridge Ø 40 with pressure balance
Cod. AP99120-H
1 outlet with shut-off
Cod. AP99121-H
2 outlets with shut-off
Cod. AP99122-H
2 outlets + one simultaneous outlet with shut-off
Product features
Fixing ring nut (8 Nm) (70 lbf-in).
Integrated stainless steel filtesr.Coaxial temperature adjustment and volume control.
Volume regulation with shut-off and possibility of 2-way deviation.
Pressure balance.
Integrated no return valves.
Safety system in the absence of cold water.
Designed for installation with:
-Instantaneous water heaters
-gas water heaters
-centralized systems
Performances and safety features comply EN1111, ASSE1016, ASME A112.18.1 and CSA B125.1
Factory settings
All thermostatic cartridge are calibrated at the factory at 38°C +/-1 (100°F +/-1) and temperature differential of 50°C (122°F) at 3 bar (43.5 psi) pressure.
With different hydraulic parameters, a new calibration may be necessary on place.
